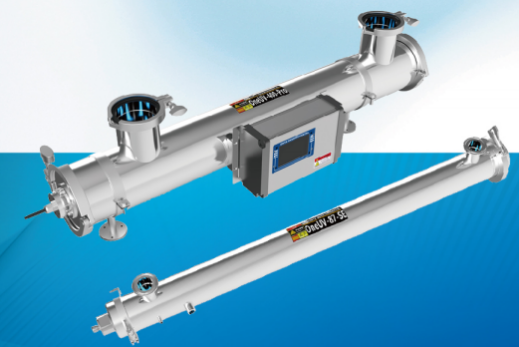

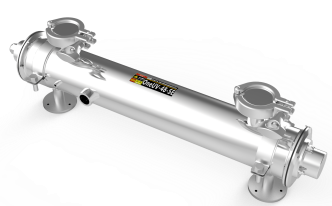

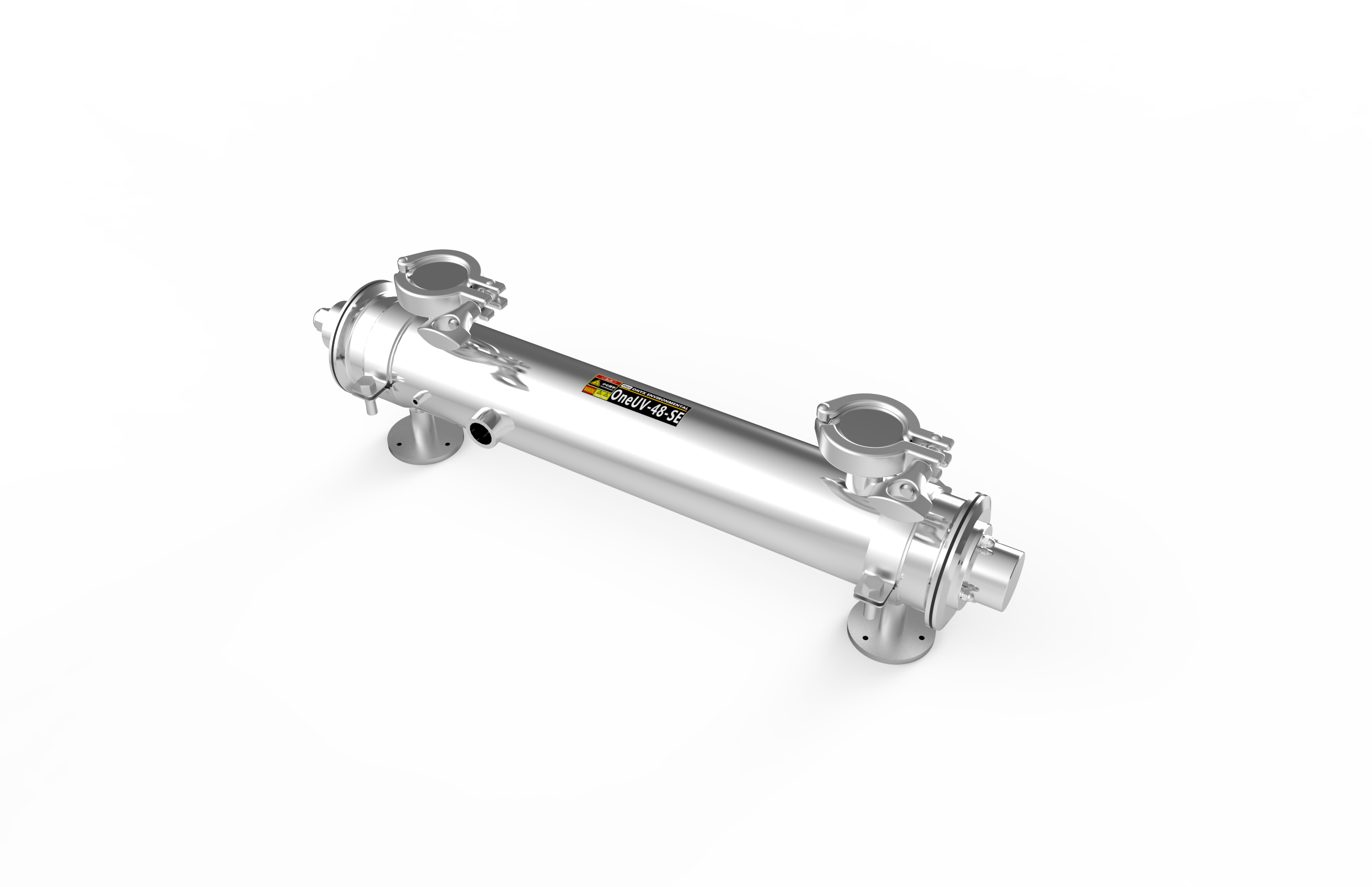

Name: OneUV UV Sterilizer
Brand: ONYX
Author: ONYX Technical Team

Advantages

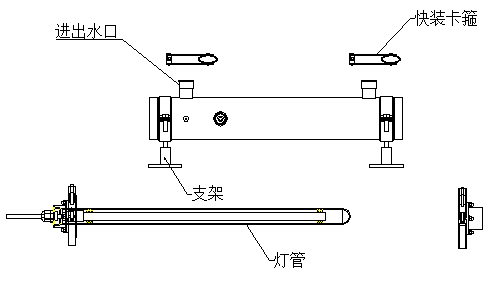

	Quick-release Clamp: No tools required, one-touch removal allows you to pull the lamp out of the sterilizer for cleaning or lamp replacement.

Food-grade processing: The housing and internal components, such as the cleaning ring and sealing ring, are made of food-grade materials, meeting drinking water requirements.

	Integrated Design: The control box is integrated with the device, and the ballast, intensity, and temperature sensors are integrated into the sterilizer. This eliminates the need for a traditional control cabinet, facilitating installation and maintenance.

Parameter

Product Series	ONYX-EX-ONEUV
Flow rate（@90%UVT，20mj/cm2）	0.5-40m3/h
Flow rate（@90%UVT，40mj/cm2）	0.5-20m3/h
Lamp type	254nm Low-pressure amalgam lamp
Lamp life	12000h
Lamp power	11-242w
Lamp power adjustment range	Optional
Shell material	Stainless steel 304/316
UV intensity sensor	85w and above optional
Installation location	Indoor
Control Cabinet Protection Level	IP54
Control System	Touch screen + PLC control
Power specifications	220V/50HZ
Head loss	＜400mm

Technical Specifications

Parameter	Specification
Model	OneUV UV Sterilizer
Treatment Capacity	Customized, range 1 - 100,000 m3/day
UV Dose	>=40 mJ/cm2 (meets NSF/EPA standards)
Lamp Type	Low-pressure high-output / Medium-pressure (optional)
Effective Lamp Lifespan	12,000-17,000 hours
Reactor Material	316L Stainless Steel / 304 Stainless Steel
Operating Temperature	5 - 45 °C
IP Rating	IP68 (lamp module) / IP65 (control cabinet)
Cleaning Method	Automatic mechanical cleaning / Chemical cleaning (optional)
Control System	PLC automatic control, SCADA remote monitoring supported
Certification	CE, NSF/ANSI 55, GB/T 19837

Application Scenarios

OneUV UV Sterilizer is widely used in the following applications:

Municipal Water & Wastewater: Drinking water plant disinfection, wastewater effluent treatment, water reuse disinfection
Industrial Water Treatment: Electronics ultrapure water, pharmaceutical water, food and beverage processing water
Marine & Shipping: Ballast water treatment, onboard sewage treatment
Aquaculture: Recirculating aquaculture system (RAS) water disinfection, hatchery water treatment
Swimming Pools & Landscapes: Pool water disinfection, ornamental water circulation
Advanced Oxidation: UV-AOP process for degrading refractory organics and removing micropollutants

Technical Principle

UV disinfection technology utilizes ultraviolet light (wavelength 254nm) to damage the DNA/RNA structure of microorganisms, rendering them unable to reproduce and effectively sterilizing the water. Compared with chemical disinfection, UV treatment requires no chemical additives, produces no disinfection by-products (DBPs), achieves high inactivation efficiency against bacteria, viruses, and spores, and requires only seconds of contact time. It is a safe, environmentally friendly physical disinfection method.

ONYX UV equipment features optimized reactor hydraulic design ensuring uniform UV dose distribution, paired with an automatic cleaning system to maintain lamp transmittance for long-term stable operation. The equipment supports online UV dose monitoring and real-time operational status feedback, and can be seamlessly integrated into existing SCADA systems.
